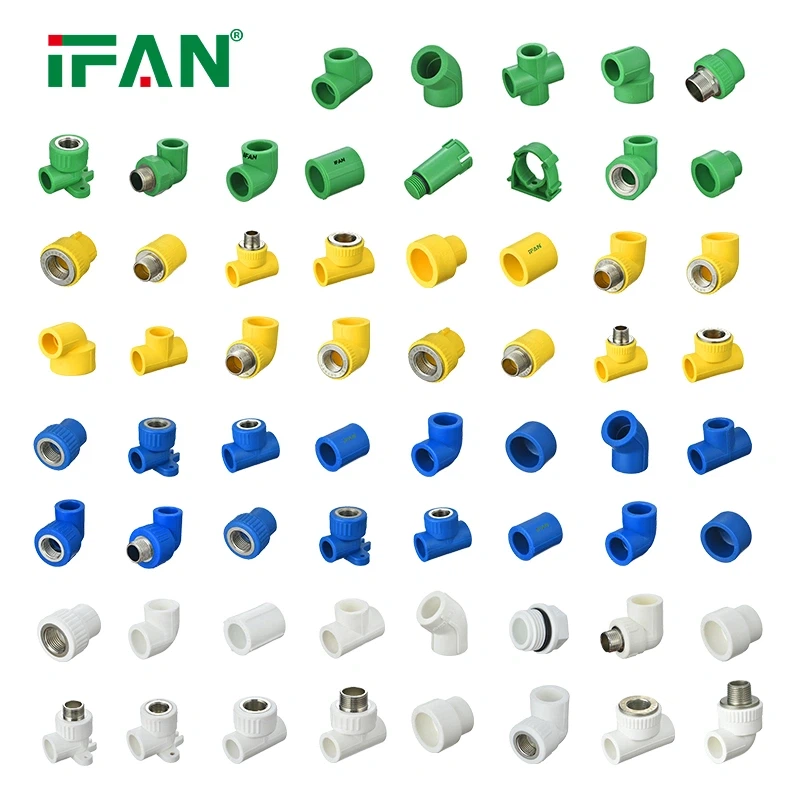

Injection Molded PPR Fitting

Stress Distribution Optimization in Modern PPR Pipe Fittings

The Importance of Stress Distribution in Piping Systems

In pressurized piping systems, stress distribution plays a decisive role in determining long-term reliability and safety. Localized stress concentration can lead to deformation, crack initiation, or joint failure, especially in hot water and heating applications. Modern PPR pipe fittings are engineered to manage internal pressure and thermal loads efficiently by optimizing how stress is distributed across the fitting body. This design approach significantly enhances durability and service life.

Advanced Structural Design of Fittings

Modern PPR pipe fittings adopt refined geometric profiles to reduce sharp transitions and abrupt changes in wall thickness. Smooth radii at corners, gradual tapers, and reinforced critical sections help spread internal pressure evenly throughout the fitting. By avoiding stress concentration zones, these optimized designs reduce the risk of localized material fatigue and improve the overall mechanical stability of the piping system.

Role of Material Homogeneity

PPR material is characterized by a uniform molecular structure that supports consistent stress transfer under load. During pressure application, stress is evenly shared across the fitting body rather than being focused at weak points. This homogeneity allows modern PPR fittings to maintain structural integrity even under long-term pressure and temperature exposure, making them suitable for both cold and hot water systems.

Precision Injection Molding and Wall Thickness Control

Stress distribution optimization is closely linked to manufacturing precision. Advanced injection molding technology ensures consistent wall thickness and controlled material flow during production. Uniform wall thickness minimizes internal stress imbalance, while controlled cooling processes reduce residual stress. As a result, modern PPR pipe fittings exhibit improved dimensional stability and predictable mechanical behavior under operating conditions.

Heat Fusion Joints and Stress Continuity

Heat fusion joining creates a continuous material structure between the pipe and fitting. This continuity eliminates mechanical discontinuities that could otherwise concentrate stress at the joint. When pressure is applied, stress flows smoothly across the fused connection, effectively matching the strength of the pipe body. This optimized stress transfer is a key reason why modern PPR systems demonstrate excellent joint reliability over long service periods.

Performance Under Thermal and Pressure Cycling

Modern PPR pipe fittings are designed to withstand repeated pressure and temperature cycles without compromising stress balance. The material's ability to absorb thermal expansion and contraction helps prevent stress accumulation over time. Optimized fitting design further ensures that these cyclic loads are distributed evenly, reducing the risk of long-term fatigue or joint failure.

Long-Term Reliability Through Engineering Optimization

Stress distribution optimization is a fundamental factor behind the long-term performance of modern PPR pipe fittings. Through advanced design, material uniformity, and precise manufacturing, these fittings achieve balanced stress management under real-world operating conditions. This engineering approach ensures reliable performance, extended service life, and enhanced safety in modern plumbing and heating systems.
