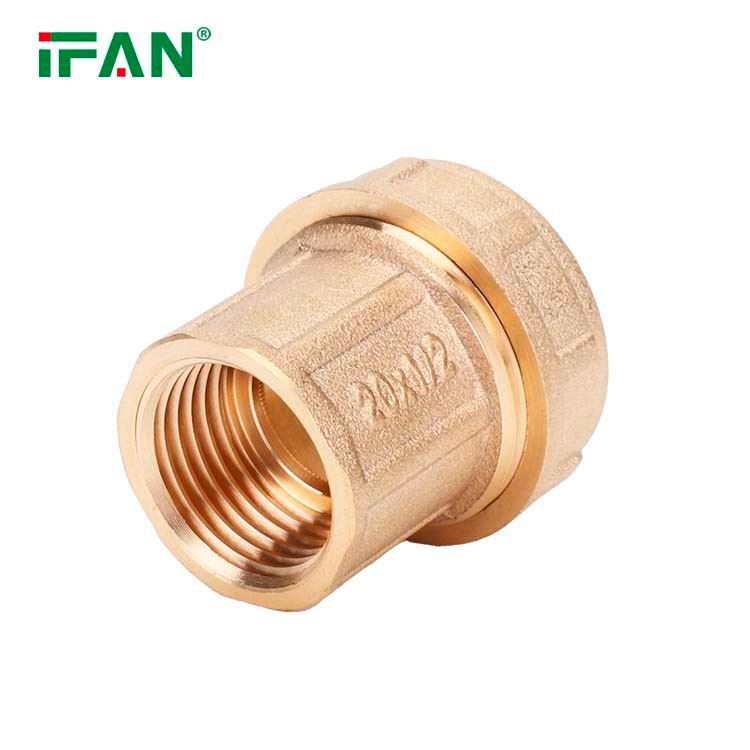

IFAN Brass PE Compression Fittings Female Socket

I. Product Characteristics
Material & Structure

Main Material: High-strength brass (e.g., CW617N or 57-3 brass) offers excellent corrosion resistance and mechanical strength, ideal for long-term contact with water, gas, and other media.

Sealing Design: A compression ring (ferrule) and nut work together to apply uniform pressure on the pipe during tightening, forming a reliable seal without welding or adhesive.

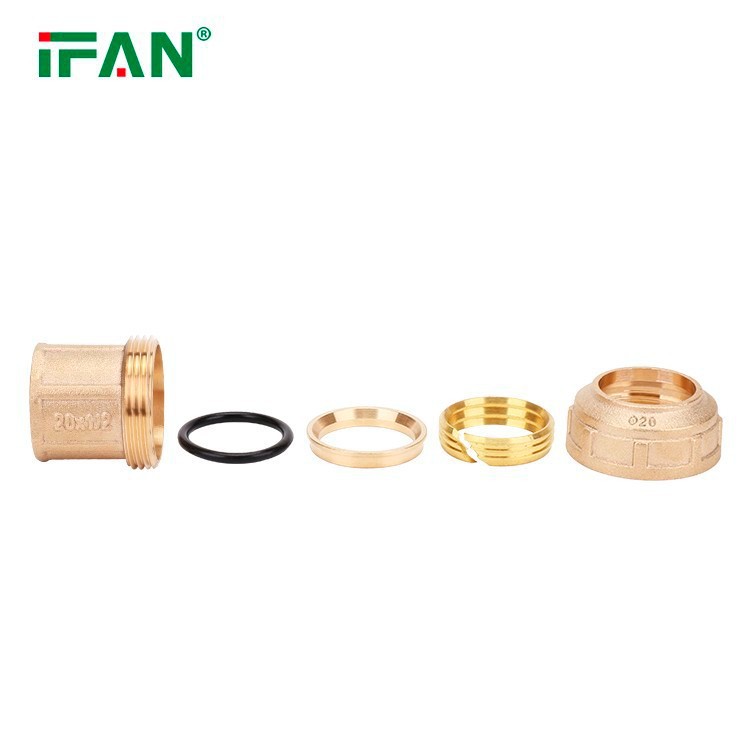

Structural Components: Typically includes a brass body, compression ring, and nut. Some models may incorporate a stainless steel sleeve to enhance pressure resistance.

Specifications & Compatibility

Size Range: Covers DN20 to DN110mm (or 1/2" to 4"), accommodating various PE pipe diameters.

Pressure Rating: Complies with standards like SDR11, capable of withstanding high working pressures for water supply and gas systems.

Interface Types: Available with internal threads (e.g., BSP or NPT) or external threads for easy connection to other pipeline accessories (e.g., valves, tees).

Performance Advantages

Corrosion Resistance: Brass material resists corrosion from water, air, and common chemicals, extending service life.

High-Temperature Tolerance: Withstands elevated temperatures, suitable for hot water supply systems or scenarios requiring high-temperature sterilization.

Easy Installation: Requires no special tools or skills; manual tightening of the nut completes installation, saving time and labor costs.

Reusability: Maintains sealing performance after disassembly, facilitating system maintenance or upgrades.

II. Application Scenarios
Water Supply Systems: Connect PE water pipes for stable water transmission, minimizing leakage risks.

Gas Transmission: Adapt to gas pipeline systems, ensuring safe and efficient gas delivery to end-use equipment.

Industrial Pipelines: Used in chemical, food processing, and other industries to connect PE pipes carrying corrosive or high-temperature media.

Agricultural Irrigation: Link PE pipes in farm irrigation systems to deliver water, supporting automated irrigation equipment operation.

III. Technical Standards & Certifications
International Standards: Comply with ISO4427, EN12201, ASTM D3035, and other global pipeline standards, ensuring product quality and safety.

Certification Systems: Pass ISO9001 quality management system certification and CE certification, meeting European and international market access requirements.

Environmental Compliance: Materials adhere to RoHS and other environmental directives, free from harmful substances, ensuring safety and environmental friendliness.

IV. Installation & Maintenance
Installation Steps

Cut the PE pipe to the desired length, ensuring a flat end face.

Slide the compression ring onto the pipe, then insert the pipe into the fitting body to the specified depth.

Manually tighten the nut to the recommended torque (typically using a torque wrench) to avoid over-tightening and damage.

Maintenance Recommendations

Regularly inspect the fitting for leaks; retighten or replace components if necessary.

Avoid prolonged use in extreme temperatures or chemically corrosive environments; take protective measures when required.

Use dedicated tools for disassembly to prevent damage to threads or the compression ring.
