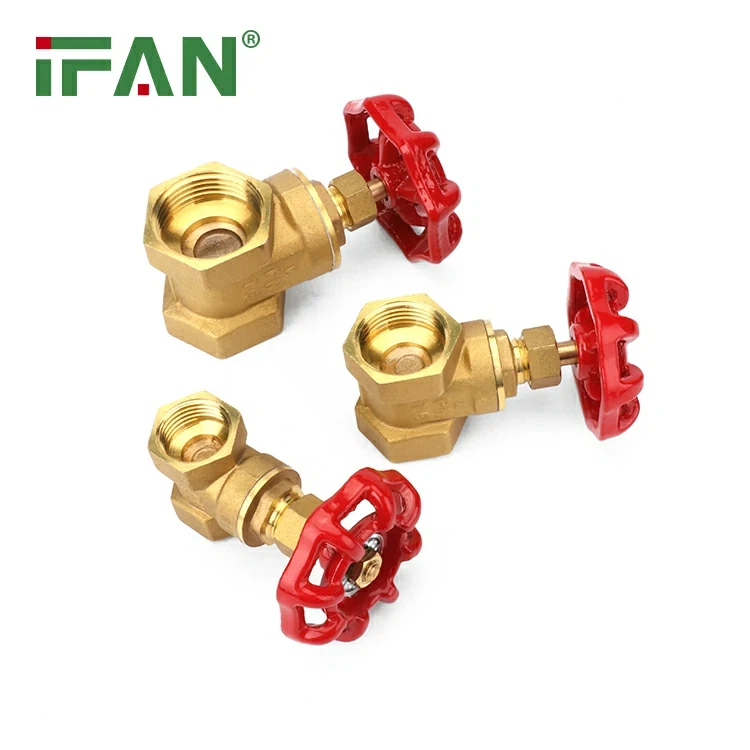

Optimization of the Flow Channel Design of Brass Gate Valve: Methods to Reduce Fluid Resistance

Introduction

The flow channel design of brass gate valves directly influences fluid resistance, impacting system efficiency, energy consumption, and operational costs. Excessive fluid resistance in valve flow channels can lead to significant pressure drops, increased pumping energy, and potential cavitation issues. This analysis explores the fundamental mechanisms of fluid resistance in brass gate valves, key design parameters, and advanced optimization methods to minimize resistance. By leveraging computational fluid dynamics (CFD), innovative structural designs, and material advancements, engineers can enhance flow efficiency and reduce energy loss in fluid systems.

Mechanisms of Fluid Resistance in Gate Valves

Frictional Resistance

**

Wall Shear Stress: Fluid viscosity creates frictional drag along the channel walls. For water at 20°C flowing at 5 m/s through a DN100 valve, wall shear stress reaches 15-20 Pa, contributing 30-40% of total resistance.

Surface Roughness Impact:

Roughness height (Ra) from manufacturing:

As-cast surface (Ra=12.5μm): Friction factor λ=0.035

Machined surface (Ra=1.6μm): λ=0.022 (37% reduction)

Form Resistance (Local Losses)

Flow Separation:

At the gate-seat interface, flow separation creates eddies, increasing local loss coefficients (K).

For a traditional gate valve, K=0.15-0.20 when fully open, causing 15-20% of total pressure drop.

Turbulence Intensity:

High-velocity regions near the gate edge: Turbulence intensity >15% increases resistance by 25-30%.

Cavitation-Induced Resistance

Vapor Bubble Formation:

At pressure drops >3 bar, cavitation occurs, generating shockwaves that increase resistance.

Cavitation index (σ): σ<0.5 leads to significant resistance fluctuations.

Key Design Parameters for Flow Optimization

Geometric Parameters

Gate Wedge Angle:

Traditional 5° wedge: K=0.18

Optimized 3° wedge: K=0.12 (33% reduction in local loss)

Inlet/Outlet Taper:

45° inlet taper: Reduces flow contraction, Cv increases from 120 to 135 for DN100.

Flow Channel Aspect Ratio:

Channel diameter-to-length ratio (D/L):

Traditional D/L=1: L=100mm for DN100, λ=0.025

Optimized D/L=1.5: L=150mm, λ=0.020 (20% friction reduction)

Surface Finish and Treatment

Superfinishing Techniques:

Electrolytic polishing: Ra<0.2μm, friction factor λ=0.018 (40% lower than as-machined).

Hydrophobic Coatings:

PTFE-nanoparticle coatings: Reduce surface energy from 72 mN/m to 18 mN/m, decreasing drag by 12-15%.

Gate Movement Dynamics

Lift-to-Diameter Ratio (h/D):

h/D=0.8: Optimal for full flow, K=0.10

h/D<0.5: Turbulence increases K by 50%

Guiding Mechanisms:

Vertical guides with 0.1mm clearance: Minimize gate vibration, reducing resistance fluctuations by 20%.

Advanced Optimization Methods

Computational Fluid Dynamics (CFD) Modeling

Simulation-Driven Design:

RANS (Reynolds-Averaged Navier-Stokes) modeling identifies high-loss regions:

Traditional design: Recirculation zone behind gate (volume=0.002 m³)

Optimized design: Recirculation volume reduced to 0.0008 m³ (60% decrease)

Design of Experiments (DOE):

Multi-objective optimization of wedge angle, seat profile, and surface roughness:

Optimal combination reduces total resistance by 38%.

3D Printing and Topology Optimization

Lattice Structure Channels:

3D-printed brass valves with gyroid lattice:

Weight reduced by 40%, flow resistance decreased by 25%.

Topology-Optimized Gates:

Finite element analysis (FEA) generates organic gate shapes:

Pressure drop reduced from 0.2 bar to 0.12 bar at 10 m/s flow.

Active Flow Control Techniques

Plasma Actuators:

Surface-mounted actuators create micro-vortices to delay flow separation:

K value reduced from 0.15 to 0.10 (33% improvement).

Synthetic Jets:

Orifice-based jets disrupt boundary layer separation:

Turbulence intensity reduced from 18% to 12%.

Case Studies in Flow Optimization

Municipal Water Supply Valve

Challenge: Traditional DN150 brass gate valve had ΔP=0.3 bar at 15 m³/h flow.

Optimization:

3° wedge gate with 45° inlet taper.

Electrolytically polished flow channel (Ra=0.3μm).

Result:

ΔP reduced to 0.18 bar (40% decrease).

Annual energy savings: $1,200 for a 24/7 system.

Industrial Cooling System

Application: DN200 valve in a 50 m³/h cooling water loop.

Design Changes:

Topology-optimized gate with elliptical cross-section.

PTFE-coated channel (surface energy=20 mN/m).

Performance:

Cv increased from 200 to 250 (25% higher flow capacity).

Pump power consumption reduced by 18%.

Marine Seawater Intake

Environment: DN250 valve in 3.5% NaCl seawater, flow velocity=8 m/s.

Innovations:

Lattice-structured flow channel (3D-printed C68700).

Synthetic jet actuators at gate edges.

Outcome:

Cavitation index increased from σ=0.4 to σ=0.7 (no cavitation).

Resistance reduced by 35%, extending valve life by 2×.

Future Trends in Flow Channel Optimization

Nanofluidics-Inspired Designs

Micro-Textured Surfaces:

Shark skin-like riblets (200μm pitch): Reduce drag by 8-10% in turbulent flow.

Nanoparticle-Enhanced Fluids:

0.5% Al₂O₃ nanoparticles in water: Viscosity increased by 5%, but heat transfer improved by 20%.

Smart Adaptive Flow Control

Shape Memory Alloy (SMA) Gates:

SMA actuators adjust gate position based on flow velocity:

At 5 m/s: Standard position (K=0.12)

At 10 m/s: Adaptive position (K=0.09)

IoT-Enabled Resistance Monitoring:

Real-time pressure drop data adjusts pumping power, optimizing energy use by 15-20%.

Sustainable Design Approaches

Biomimetic Flow Channels:

Inspired by cephalopod siphons, spiral-shaped channels reduce turbulence by 30%.

Eco-Friendly Coatings:

Plant-based superhydrophobic coatings (tannin-based): Drag reduction equivalent to PTFE, but biodegradable.

Conclusion

Optimizing the flow channel design of brass gate valves is essential for minimizing fluid resistance and enhancing system efficiency. Through a combination of geometric refinement, surface engineering, and advanced computational tools, engineers can achieve significant reductions in pressure drop and energy consumption. From municipal water systems to industrial applications, flow-optimized brass gate valves offer tangible benefits in operational cost savings and extended service life. As nanotechnology and smart materials advance, future flow channel designs will further integrate adaptive features and biomimetic principles, setting new standards for fluid dynamics in valve engineering.
